Simcad Pro Process Simulation Software

On-The-Fly, Interactive, Dynamic
Manufacturing & Assembly
Simulation Software

Manufacturing Simulation, Modeling, and Optimization Software

A Patented No-Coding simulation modeling environment delivers
unmatched ease of use and real time optimization

Modify the model during the simulation run, analyze the impact of constraint changes without the need to stop/restart the simulation.
  • Add, modify, and remove constraints and definitions
  • Modify model flows, speeds and capacities
  • Add and modify processes and inter-process connections
  • Add and modify custom KPI dashboards
  • Analyze the model flow with live resouce, process, and object monitoring



Achieve an average of 50% reduction in model turn-around time
with On-The-Fly Interactive Dynamic Simulation.




Advantages and Capabilities of Simcad Pro® Process Simulation Software

Graphical Model Flow and Constraints

Graphical Model Flow and Constraints in simualtion

On-The-Fly User Interaction

On-The-Fly User Interaction in simualtion

SimData® Input Time and Motion Studies

Input Time Studies

SimTrack® Dynamic Replay with Analysis

SimTrack Replay with Simulation

Constraint Variability Real-Time Connectivity

Constraint Variability Real-Time Connectivity in simualtion

Constraint Variability

Constraint Variability in simualtion



process simulation software

Next Generation Predictive Analytics and Dynamic Simulation,

Simcad Pro®, offers an intuitive and interactive 3D simulation environment to improve, optimize and visualize process flow systems. Simcad Pro® enables users to plan, optimize, and re-arrange processes and procedures while optimizing layouts, facility improvement, automation and schedules. Simcad Pro® integrates with live and historical data to provide the most effective and interactive simulation system on the market today. Applications in multiple industries including manufacturing, automation, logistics, distribution warehouse, food and beverage, services, and more.


 Manufacturing Simulation Software
Click for more information on Simcad Pro - Simulation Software
  Benefits and ROI
Click for more information on Benefits and ROI



Simcad Pro® Dynamic Simulation Features

Dynamic Process Simulation

dynamic process simualtion

2D and 3D Visualization / Animation

2d/3d Visulization

Dynamic Value Stream Mapping

value stream mapping

Multiple Scenario Analysis

multiple scenario analysis

Custom Reports

custom reports

Scheduling and Gantt Chart

scheduling / gantt chart




2D and 3D Manufacturing, Warehouse, and Logistics Simulation Models

manufacturing simualtion
manufacturing simualtion
manufacturing simualtion
manufacturing simualtion



2D & 3D Animation

Integrated 2D and 3D visualization engine provides both
2D and 3D visualization with detailed animations.

Includes Custom dashboards, full 3D Animation capability, Auto-scaling from CAD files, collision detection, and support for a large set of 2D and 3D file formats.
  • Library-based customizable icons supporting multiple 2D & 3D file formats
  • Real-time visualization in 2D and 3D with animated 2D and 3D components
  • Automatic creation of animated flows
  • Unlimited nesting of flow layers and elevations




Multiple model outputs and animated visuals generated
with Singular Model Building Technology.




2D and 3D Automation, and Distribution Warehouse Simulation Models

manufacturing simualtion
manufacturing simualtion
manufacturing simualtion
manufacturing simualtion



 Manufacturing Simulation Software
Click for more information on Simcad Pro - Simulation Software
  Benefits and ROI
Click for more information on Benefits and ROI



Real-Time Data and External Connectivity

External Data Systems ( Extensive connectivity to most data systems ) -
Unlimited number of external data connections or applications.

Connect prior to, during, and after the simulation run. Analyze data with the built in scenario manager, or export it to a wide variety of applications.
  • Integrated connectivity tools to most data systems including WMS, ERP, WCS, EMR/EHR, databases and Excel
  • Use actual data to increase model accuracy, support seasonality transition analysis, improve validation, and increase model flexibility
  • Automation capabilities include AGV's, AS/RS, Robots, and other automated equipment




Interactive, Dynamic Simulation Provides
Unmatched Ease-Of-Use.




2D and 3D Process Flow Simulation Videos

manufacturing simualtion
manufacturing simualtion
manufacturing simualtion
logistics simualtion



I want to start working with Simcad Pro.

Free trial download – No limitations on model size. No disabled features.


LEAN and Six Sigma Implementation

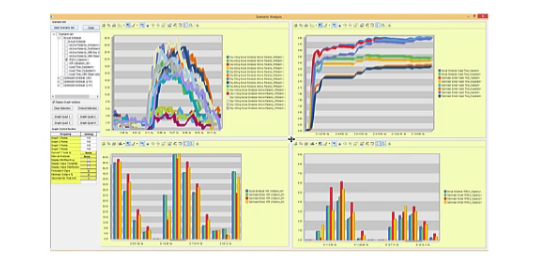

Multple Scenario Analysis

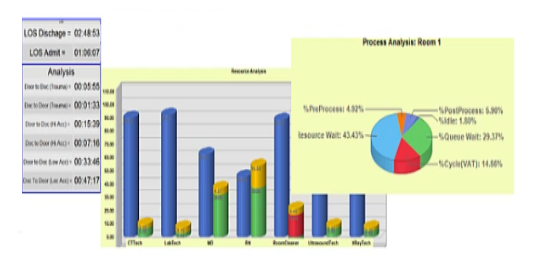

On-Screen Dashboards

process simualtion

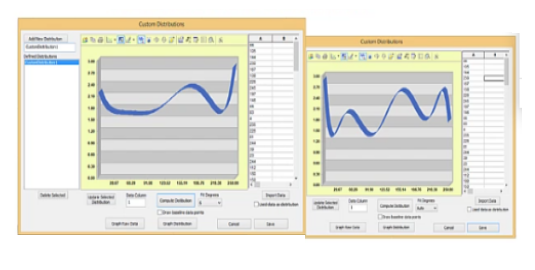

Custom Fit Distributions

process simualtion

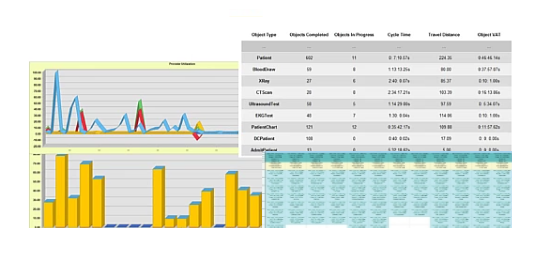

Custom Reports

process simualtion



 Manufacturing Simulation Software
Click for more information on Simcad Pro - Simulation Software
  Benefits and ROI
Click for more information on Benefits and ROI

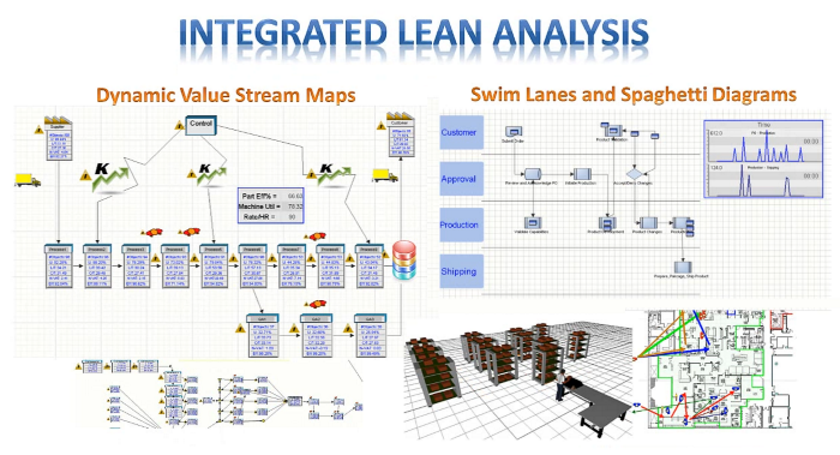

Integrated Lean Metrics and Value Stream Mapping

With every model built, Simcad Pro® automatically computes and
generates the model value stream map and all required lean analysis

Including Spaghetti Diagrams, Swim Lanes, heat maps, efficiency and OEE analysis. Simcad Pro® also provides an extensive list of reporting and analysis tools to further improve the lean analysis enviroment:
lean analysis of simulation
  • Updates to the model constraints are dynamically transferred to the Value Stream Map and analysis
  • Cycle time breakdown showing non-value added time and schedules in a spreadsheet and Gantt chart format
  • Built in Scenario Analyzer tool with full graphing capability, interval analysis, variablility and case analysis
  • Automated scenario control generation
  • Analyze and compare model variability
  • Generate data distribution for all tracked parameters
  • Simulation data-reset eliminates the effect of "warm-up" time



Extensive, Integrated Functionality to model the most
complex operations.




What is NEW in Simcad Pro® - 13.1 with Virtual Reality

on-the-fly dynamic simulation software

What is new in Simcad Pro® 13.1 VR

Simcad Pro® 13.1 now supports the Oculus@ VR glasses with animated 3D view of the flow. The new Simcad Pro® 13.1 release allows for model changes to be dynamically applied to the VR world, results and stats from the model update in real-time. The VR view is dynamically generated based on model progress, with live changes and analysis. In addition to the VR changes, the following new features are included:

  • Enhanced internal module support and expanded functionality.
  • Improved analysis with detailed spaghetti diagram, congestion analysis, and heat maps - all dynamically computed.
  • Enhanced built in module functionality.
  • Updated simulation engine to make better use of multi-core processors.
  • In addition to a number of fixes and improvements.
  • New and improved 3D engine with more light effects, shadows, and material support.
  • Improved built in wizards to create fully functional racks, ASRS, allowing for dynamic rack and ASRS updates.
  • Improved search and replace feature designed to simplify extension tracking and updates.
  • Enhanced simulation engine to make better use of multi-core procssors.
  • Support for IGES/Step file format.
  • File size optimization and enhanced base module support. and more ...




dynamic simulation software

Reduce model building time, work efficiently, and eliminate coding with
Simcad Pro® patented dynamic process simulation modeling software
